Equatorial table for my 12" Dobson

I started this equatorial table, taking as a model the excellent articles by Reiner Vogel and Ed Jones. Here are the steps:

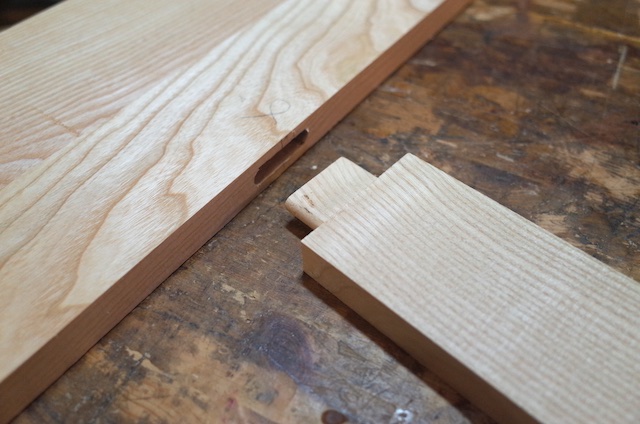

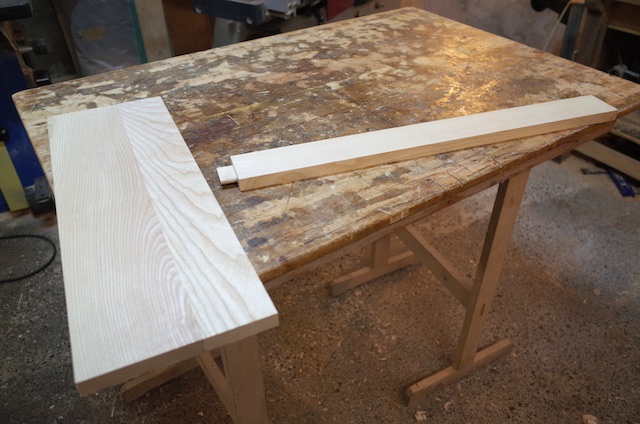

With two pieces of ash, I make a mortise and a tenon

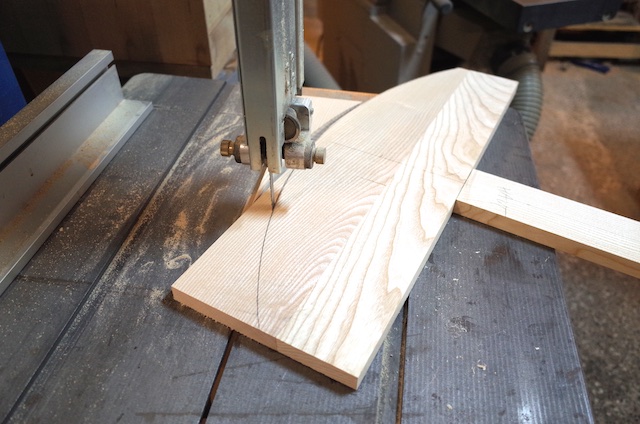

I cut a circle segment..

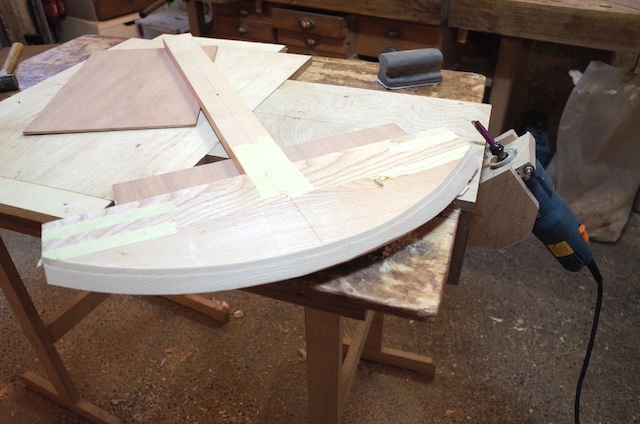

.. which is routed with an angle of 43 degrees (my latitude)

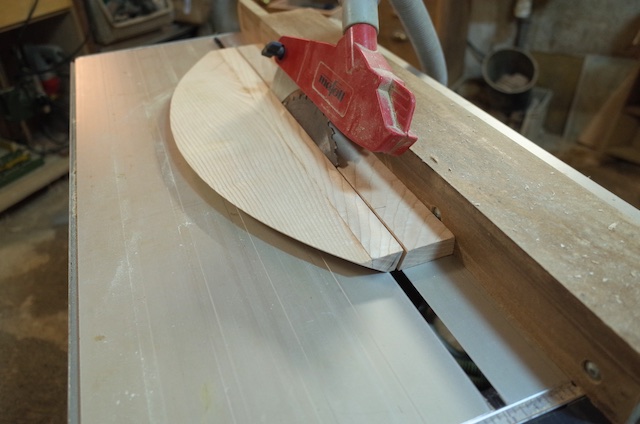

.. the resulting piece is cut lengthwise at an angle (difficult to determine - I used trial and error)

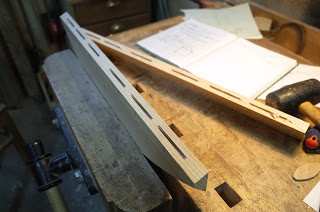

then assembled with a biscuit jointer.

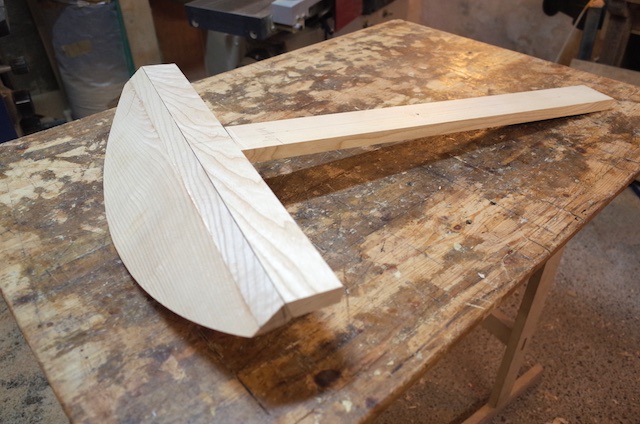

The mobile part is ready to glue up.

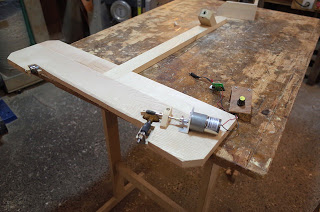

Starting to assemble the fixed part. I bought the DC motor, regulating circuit and reducing gear from conrad.fr

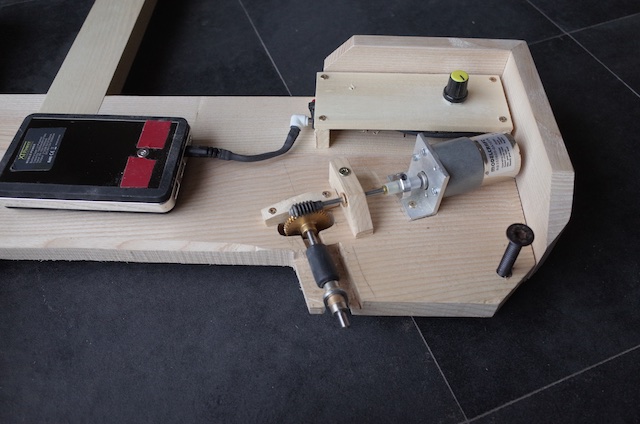

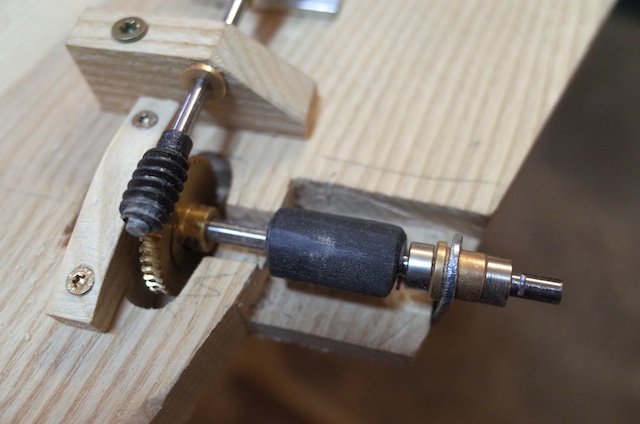

Detail of the drive cylinder, made of wood covered with heat-shrink tubing for traction

The south pivot uses a window hinge

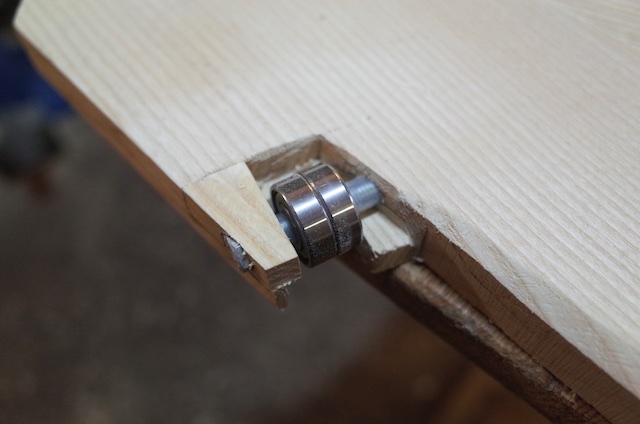

The north-east bearing

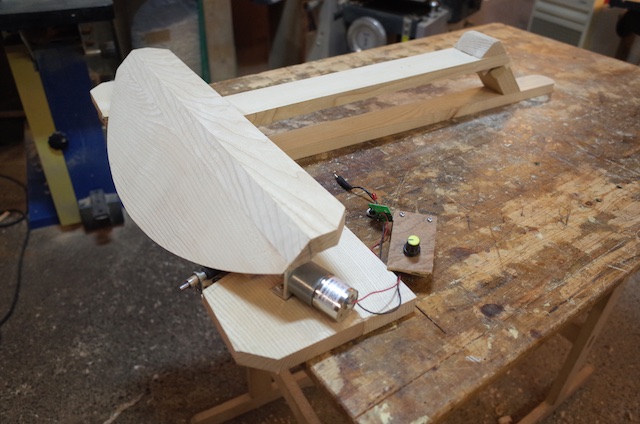

First trials

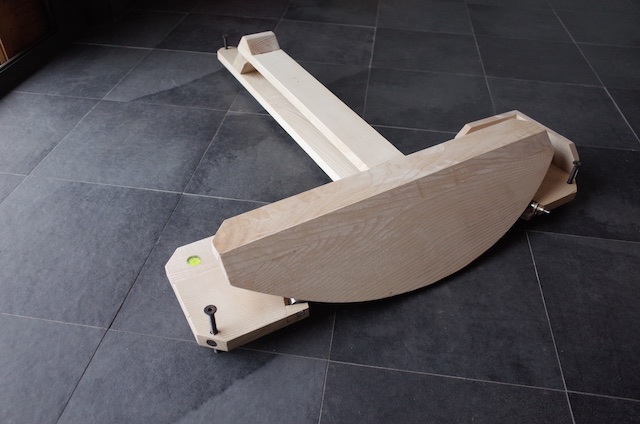

The table is almost finished, with its electronic box and leveling screws.
